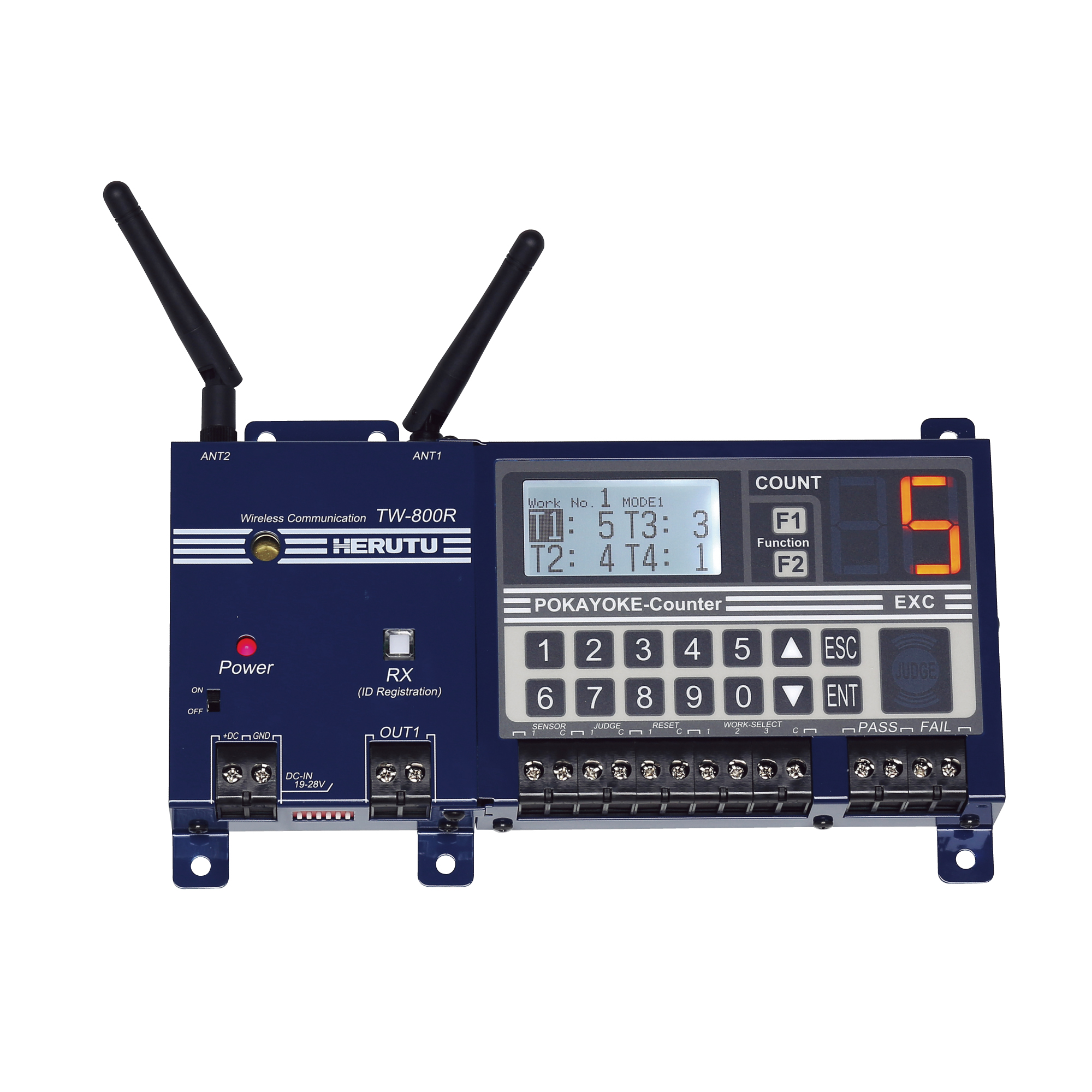

Description

Frequency Band : 2,403 MHz-2,478 MHz (A free channel is selected automatically by a frequency hopping function.)

Communication : Interactive Communication 250 kbps

Input(s) : 6 Non-voltage Contact-inputs (1 SENSOR, 1 JUDGE, 1 RESET, 3 Work-Select)

Output(s) : (At TW-800R) 1 Relay Output (Terminal Block M3)Rated Load AC/DC 30V / 0.5A

Output(s) : (At Counter Unit) 2 Relay Outputs (Terminal Block M3) (1 PASS / 1 FAIL) Rated Load AC/DC 30V / 0.5A

Display : (At TW-800R) 1 Receiver LED (Green)(also as lighting switch for pairing) 1 Power LED (Red)

Display : (At Counter Unit) 7-Segment LED 2-Digit ( (W x H) 15 x 27 mm (0.6 x 1.1″) per digit) Graphic LCD JUDGE LED : Red/Blue/Yellow/Green

Buzzer : Piezo Buzzer 95dB (at 1 m (3.3′))

Power Source : DC 24V±20% (DC 19-28V) (Terminal Block M3)

Current Consumption : 110mA or less

Operating Environment : Temperature: 0-50°C (32-122°F) Humidity: 80% or less (without condensation)

External Dimensions (W x H x D) : 218 x 100 x 30 mm (8.6 x 3.9 x 1.2″) (excluding protrusions)

Weight : Approx. 750 g (26.5 oz)

Antenna : Dipole Antenna

Switches : 1 Power Switch 1 Switch (6-Position DIP) for Setting 1 Lighting Switch (for pairing)

Keyboard : 16-Key: 0-9, ▲(UP), ▼(DOWN), ESC, ENT, F1, F2
