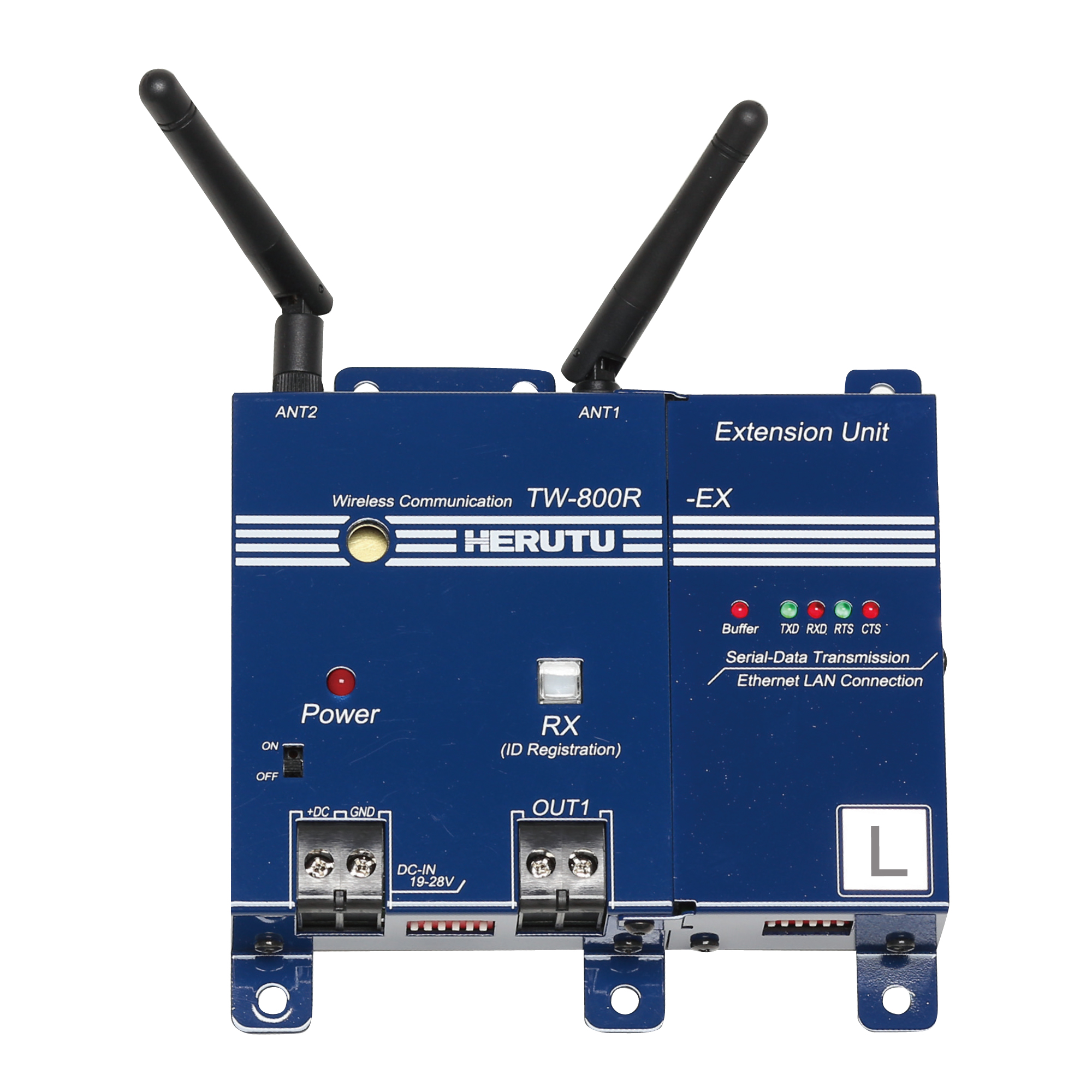

Description

Frequency Band : 2,403 MHz-2,478 MHz (A free channel is selected automatically by a frequency hopping function.)

Communication : Interactive Communication 250 kbps

Output(s) : 1 Relay Output (Terminal Block M3) Rated Load AC/DC 30V / 0.5A

Interface : RJ-45 Ethernet 10BASE-T or 100BASE-TX (Auto Detection)

Display : 1 Receiver LED (Green) (also as lighting switch for pairing) 1 Power LED (Red) 5 Comm. Monitor LEDs (Red)

Buzzer : Piezo Buzzer 95dB (at 1 m (3.3′))

Power Source : DC 24V±20% (DC 19-28V) (Terminal Block M3)

Operating Environment : Temperature: 0-50°C (32-122°F) Humidity: 80% or less (without condensation)

External Dimensions (W x H x D) : 130 x 100 x 30 mm (5.1 x 3.9 x 1.2″) (excluding protrusions)

Weight : Approx. 450 g (15.9 oz)

Antenna : Dipole Antenna

Switches : 1 Power Switch 2 Switches (6-Position DIP each) for Setting 1 Lighting Switch (for pairing)
