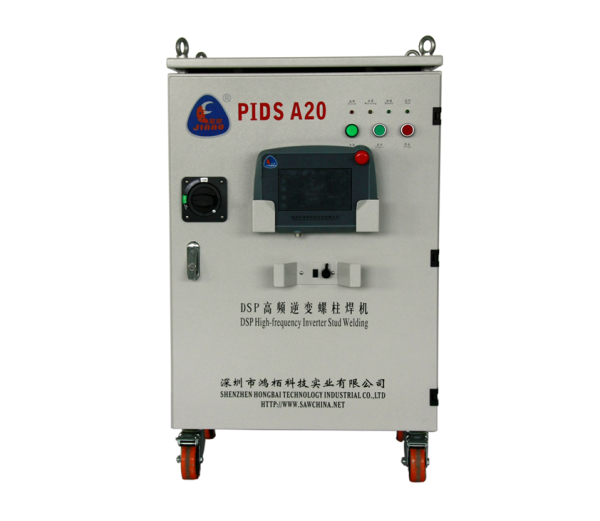

Description
The welding system applies IGBT inverter technology and DSP control technology and have the capacity carrying 5 welding can be achieved, when the system docks with robots under auto-feeding.
Maximum welding current can reach 2000A.
Technical Data
| Input voltage | 3×380V, 50/60Hz | Max KVA range | In:100~2000A |
| IP Arc initiation current | 20~100A | TW Welding time | 6~100ms |
| IP Arc initiation time | 10~100ms | △I | △I：10A |
| Input voltage tolerance | 380VAC±10% | Max KVA range | 120KVA |
| Welding rate | n: 30~60 (I=1500A, t=30ms) | ||
| Welding stud Range | Φ:3~12mm | Stud fixing time | 50~2000ms |
| Feeding time | 50~2000ms | Lag time | 50~500ms |
| Stud falling time | 0~50ms | Supporting capacity | 5-gun interface, pne/more
RS232 interfaces, Ethernet, optical fiber and CAN. |
