Description

Advanced Electro-Pulse System (EPS) technologies reduce reaction force. OLED display for instant achieved torque, angle and batch count information. Control panel can set precise torque setting from 8Nm to 120Nm (depending on models).

• High Precision & Accuracy with 8 customizable configuration 8 user configurable tighten strategies (Target Torque, Target Angle, Free Speed Setting, Shift-Down Torque / Shift-Down Speed, Clockwise / Anti-Clockwise Tightening)
• Dual Mode Wireless Data Communication: Bluetooth and Zigbee, Collect All Fastening Data in Process Through Mobile App or PLC Wireless Receiver

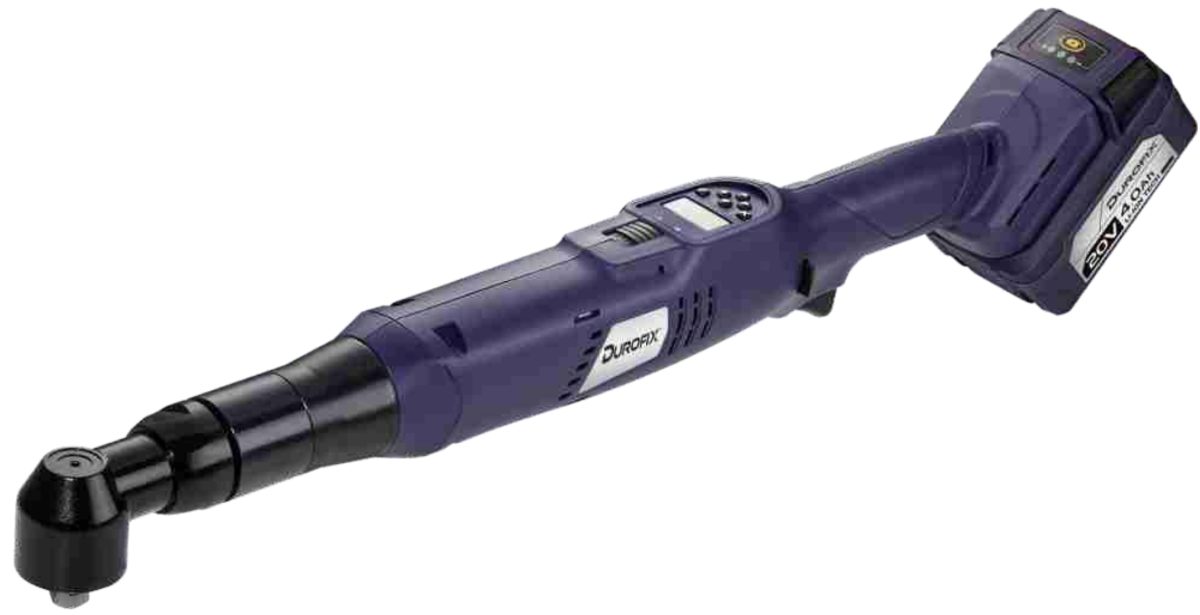

Pro-Assembly Transducerized 20V Wireless Angle Precision Tool, RV2053-xx
Available Options:
RV2053-WR45: 8 to 45 Nm
RV2053-WR80: 12 to 80 Nm
RV2053-WR120: 40 to 120 Nm

Specifications

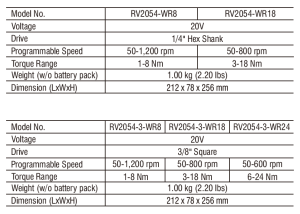

Pro-Assembly Transducerized 20V Wireless Precision Tool, RV2054-xx
Available Options:
RV2054-WR8: 1 to 8Nm
RV2054-WR18: 3 to 18Nm
RV2054-3-WR8: 1 to 8Nm                                                                                                                                                                                                                                                                                                                            RV2054-3-WR18: 3 to 18Nm
RV2054-WR18: 3 to 18Nm
RV2054-3-WR24: 6 to 24Nm

Specifications
